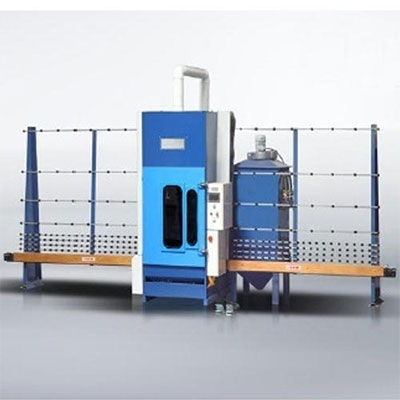

Sheet Etching Machine

Stud Blasting Machine (Suction Type) with SYNCOLITE Glass Beads
Glass Etching Machine
0 out of 5

Multi-Nozzle System with Vertical Nozzle Reciprocation

The?SYNCO Vertical Sheet Etching Machine?is a high-precision surface-treatment solution designed for?uniform chemical etching of metal sheets?in a vertical orientation. Equipped with?multiple spray nozzles and controlled vertical nozzle reciprocation, the system ensures consistent etch depth, sharp definition, and excellent repeatability across the entire sheet surface.

Description

SYNCO Vertical Sheet Etching Machine

Multi-Nozzle System with Vertical Nozzle Reciprocation

The?SYNCO Vertical Sheet Etching Machine?is a high-precision surface-treatment solution designed for?uniform chemical etching of metal sheets?in a vertical orientation. Equipped with?multiple spray nozzles and controlled vertical nozzle reciprocation, the system ensures consistent etch depth, sharp definition, and excellent repeatability across the entire sheet surface.

Core Concept

Unlike horizontal etching systems, the?vertical configuration?minimizes puddling, streaking, and uneven exposure.?Reciprocating nozzle banks?move vertically across the sheet height, delivering uniform chemical impact and controlled material removal?ideal for precision etching applications.

Key Features

1) Vertical Sheet Processing

  • Sheets held vertically on fixtures or conveyors
  • Uniform drainage of etchant ? cleaner etch profiles
  • Reduced chemical carryover and staining

2) Multiple Etching Nozzles

  • High-quality spray nozzles arranged across sheet width
  • Consistent spray density for uniform etch rate
  • Nozzle material compatible with aggressive etchants

3) Vertical Nozzle Reciprocation

  • Motorized up-down movement of nozzle banks
  • Adjustable stroke length and speed
  • Eliminates shadow zones and over-etching bands

4) Enclosed Chemical-Resistant Chamber

  • FRP / PP / PVC / SS-lined construction (as per chemistry)
  • Leak-proof design with corrosion-resistant fasteners
  • Inspection doors with safety interlocks

5) Controlled Process Parameters

  • Etchant flow rate control
  • Spray pressure regulation
  • Temperature compatibility (external heating if required)

Typical Applications

  • Nameplates & signage etching
  • Decorative metal panels
  • Electrical & electronic components
  • Filters, screens & perforated sheets
  • Precision industrial marking and patterning

Advantages

  • Highly uniform etching?over full sheet height
  • Improved?edge definition and detail sharpness
  • Reduced chemical consumption and wastage
  • Cleaner operation compared to horizontal spray systems
  • Ideal for?thin and precision sheets

Technical Configuration (Indicative ? Custom Built)

  • Sheet Size:?As per customer requirement
  • Nozzle Count:?Multiple (customized to sheet width)
  • Nozzle Motion:?Vertical reciprocation (VFD/servo driven)
  • Construction Material:?FRP / PP / PVC / SS
  • Etching Media:?Ferric chloride, nitric acid mix, alkaline etchants (as specified)
  • Operation:?Semi-automatic / Fully automatic
  • Safety:?Fume exhaust, interlocks, drip trays, emergency stop

Optional Modules

  • Pre-cleaning / degreasing spray section
  • Rinse & neutralization stages
  • Drying section (hot air / blower type)
  • PLC + HMI with recipe control
  • Fume scrubber / exhaust system

Why SYNCO

  • Custom-engineered?chemical processing machinery
  • Strong focus on?process uniformity and safety
  • Robust industrial construction for long service life
  • End-to-end support: design ? installation ? commissioning
